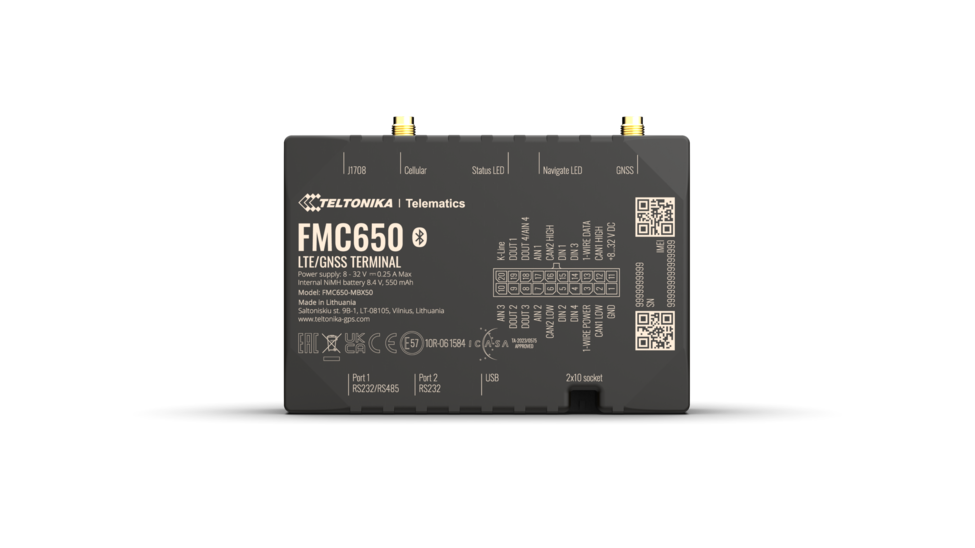

Teltonika FMC650
The Teltonika FMC650 is a top-tier Professional Category 4G LTE Cat 1 telematics terminal. It is engineered for complex, heavy-duty enterprise operations running multi-brand commercial trucks (long-haul superlinks, international logistics) and heavy yellow plant machinery (mining haulers, cranes, and construction excavators).
- Dual-Band L1/L5 Precision Tracking: Built with a premium, separate dual-channel GNSS module supporting both L1 and L5 frequencies. This delivers centimeter-level position accuracy under extreme satellite blockage conditions, such as deep open-cast mining pits or high-density urban corridors. It serves as a vital anchor for free-flow electronic road tolling.
- Simultaneous Multi-Node CAN Bus Integration: Equipped with dual CAN lines supporting FMS (J1939), Fuel CAN (J1708), and Tachograph K-Line data processing lines. Unlike lower-tier trackers, the FMC650 reads raw J1939 data directly from trucks, massive hydraulic mobile cranes, or heavy plant machines without needing external CAN adapters. It features integrated, switchable CAN line termination resistors to prevent signal interference across networks containing numerous data nodes.
- Legal Regulatory Logistics & Remote Tacho Downloads: Fully automates cross-border European and South African freight compliance via live tachograph monitoring and remote DDD file downloads. Fleet controllers can continuously audit driving times, rest intervals, and driver compliance without having to manually ground the truck to plug into the dashboard.
- Unmatched Peripheral Expansion & Serial Interfaces: Houses an extensive array of physical ports, including 2x RS232 and 1x RS485 interfaces. This hardware allocation allows the terminal to manage multiple industrial accessories simultaneously: reading RS232 liquid-level fuel sensors, interacting with digital thermographs inside refrigerated reefers, processing external RFID driver ID readers, and integrating with advanced Mobileye ADAS driver safety cameras.
- Dual-SIM failover & Critical Asset Security: Features dual SIM slots (with eSIM compatibility) to guarantee uninterrupted global coverage across border crossings and deep cellular blind spots by switching network operators instantly. Its upgraded processing core and massive 16MB internal flash memory handle extensive data storage, while a heavy-duty 550 mAh internal backup battery provides prolonged standalone operation if main vehicle power wires are physically sabotaged.
Teltonika FMC650 Technical Specification Sheet
| Category | Parameter | Specification Detail |
|---|---|---|
| Connectivity | Technology | 4G LTE Cat 1 (with 2G GSM/GPRS fallback) |
| SIM Options | Dual-SIM (2x Micro-SIM slots) or eSIM compatibility | |
| Positioning | GNSS Module | Premium Airoha AG3335MB separate module |
| Frequency Bands | L1 and L5 dual-band receiver (GPS, GLONASS, GALILEO, BEIDOU, QZSS) | |
| Antennas | External High-gain GNSS and External Cellular antennas | |
| Power | Operating Voltage | 10V to 30V DC with integrated overvoltage surge protection |
| Backup Battery | High-capacity 550 mAh Ni-Mh rechargeable internal battery | |
| Data Reading | CAN Interfaces | 2x CAN lines (FMS J1939, Volvo/Renault J1708, Tacho CAN) |
| CAN Resistors | Integrated switchable terminators configurable via software | |
| Interfaces | Digital inputs / Outputs | 4x Digital Inputs (DIN) and 4x Digital Outputs (DOUT) |
| Analog Inputs | 4x Analog Inputs (AIN) for precise voltage monitoring | |
| Serial Ports | 2x RS232 ports and 1x RS485 port | |
| 1-Wire Connection | 1x 1-Wire data line + 1x dedicated 1-Wire power line | |
| Wireless Connectivity | Bluetooth 5.2 + LE (supports up to 4 wireless environmental sensors) | |
| Physical | Dimensions & Weight | 105 mm x 78 mm x 29 mm | 199 grams |
| Ingress Protection | IP41 rated ruggedized enclosure | |
| Memory | 16 MB internal flash memory (stores up to 3x more tracking data) |
Truck & Plant Hire Simplified
How It Works.
Select the Required Fleet or Plant Assets
Clients browse the centralized digital inventory of trucks, logistics fleets, and yellow plant machinery. The platform accommodates both short-term project rentals and long-term industrial leases:
- Logistics & Freight: Options include Tipper Trucks, Side Tippers, and Lowbeds to secure specific cargo routes.
- Construction Yellow Plant: Earthmoving, lifting, and road construction machinery such as Excavators, Graders, Rollers, and Telehandlers.
- Mining Operations: Heavy-duty machinery for load-and-haul operations, engineering, crushing, or screening.
Submit a Hire Request or Route RFQ
Once the client selects the necessary equipment or defines their transit lanes, they submit a detailed operational brief:
- Asset Booking: Select the equipment, specify rental duration, and request day a quotaion.
- Route RFQs: For cargo movements, clients publish their required routes, cargo volume parameters, and timeframes.
Automated Matching & Vendor Bidding
Acemec Fleets digital tendering system broadcasts the client's request directly to its network of 100+ vetted transport companies and thousands of registered assets.
- Approved, compliant vendors submit competitive quotes based on their available fleet capacity.
- Acemec's system filters bids transparently based on asset compliance, operational suitability, and competitive pricing to present optimal fulfillment choices.
Secure Escrow Funding
To protect both the client and the subcontractor, Acemec utilizes a strict escrow payment architecture.
- Before any asset is dispatched, the client deposits the contract funds securely into an escrow account.
- Capital is held safely and is only released to the working vendor in stages based on verified milestone achievements (e.g., initial pickup, mid-route transit, final delivery).
Monitored Dispatch & Milestone Delivery
Once funded, the booking moves into automated dispatch and execution managed by the Acemec Fleet team:
- Live Telematics Visibility: Every dispatched vehicle utilizes active GPS tracking, e-locks, and geofenced route boundaries to provide real-time location monitoring.
- Digital Proof-of-Delivery (POD): Drivers utilize specialized driver apps to upload digital signatures and completion paperwork directly upon arrival.
- Milestone Triggers: The digital upload of the flawless POD automatically triggers the final escrow fund release to settle the vendor invoice.
